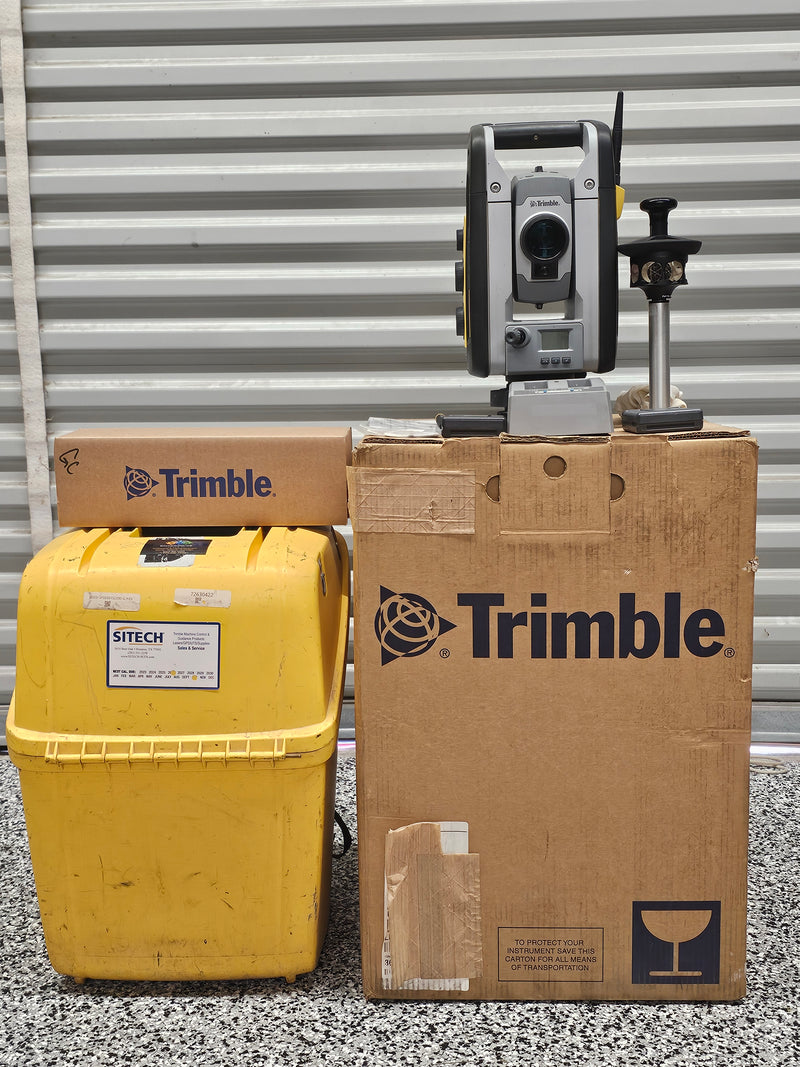

Trimble SPS930 1" DR Plus Robotic Total Station W/ Machine Control Option Calibrated
Trimble SPS930 DR+ 1″ Robotic Total Station — Recently Calibrated, Excellent
Top-tier robotic total station for heavy civil construction, machine control, and high-precision site positioning. 1″ angular accuracy, MagDrive™ servo technology, and DR+ extended-range Direct Reflex measurement. Pairs with Trimble SCS900, Siteworks, and machine control systems. Recently inspected and calibrated at a certified Trimble service center. Ships from Houston, TX.
- Trimble SPS930 DR+ Robotic Total Station
- (2) Trimble Internal Li-Ion Batteries (11.1 V, 4.4 Ah)
- Battery Charger
- Rain Cover
- Whip Antenna (2.4 GHz)
- Calibration Certificate from Certified Trimble Service Center
| Cosmetic Condition | Excellent — minimal wear, well cared for |
| Operational Condition | Fully functional — all systems tested |
| Usage | Minimal use |
| Most Recent Service | Recently inspected and calibrated at a certified Trimble service center |
| Documentation | Calibration Certificate included |
| Type | Robotic Total Station with DR+ EDM |
| Angular Accuracy | 1″ (0.3 mgon) horizontal & vertical (ISO 17123-3) |
| Distance Accuracy (Prism Mode) | ±(1 mm + 1 ppm) per ISO 17123-4 |
| Distance Accuracy (DR Mode) | ±(2 mm + 2 ppm) standard / ±(4 mm + 2 ppm) tracking |
| Range — Single Prism (Long Range) | Up to 5,500 m (18,044 ft) |
| Range — DR+ Extended (90% reflective) | 2,000 – 2,200 m (6,560 – 7,216 ft) |
| Servo Technology | MagDrive™ electromagnetic direct drive — 115°/sec rotation |
| Robotic Range | 500 – 700 m to AT360 / MT1000 targets |
| Telescope | 30× magnification, 40 mm aperture, 1.5 m – ∞ focus |
| Tracking Update Rate | 20 Hz synchronized angle & distance |
| Radio | 2.4 GHz frequency-hopping spread-spectrum |
| Communication | USB, Serial, Bluetooth® |
| Environmental Rating | IP65 dust & water resistant |
| Operating Temperature | −20 °C to +50 °C (−4 °F to +122 °F) |
| Battery Runtime | Approx. 6 hrs per internal battery |
| Instrument Weight | 5.25 kg (11.57 lb) — Robotic configuration |
| Machine Control | Compatible with Trimble GCS / PCS systems |
- Heavy civil construction layout
- Machine control & grade checking
- Site positioning with SCS900 / Siteworks
- Bridge, road, and rail construction
- Earthworks & volume calculations
- Pipeline and utility layout
- As-built surveys
- Industrial & plant construction
Download the official Trimble SPS930 data sheet
This unit was recently inspected and calibrated at a certified Trimble service center and ships with the official Calibration Certificate. The instrument has been further inspected and tested by our in-house technical team prior to shipping.
30-day return window. Send us a message with any pre-sale technical questions — we know this equipment inside and out.
We are not an authorized Trimble dealer, distributor, or affiliate. This listing is not sponsored, endorsed, or associated with Trimble Inc. in any way.
The equipment offered is pre-owned and does not include Trimble's official warranty or support services. Buyers will not be able to register or obtain a manufacturer warranty through Trimble for this item.
However, we stand behind our products and provide our own warranty and support to ensure customer satisfaction.
We ship to all 50 states via FedEx and UPS. Most orders ship within 1–2 business days of payment. Tracking provided on all orders.
We ship worldwide. International customers please contact us for a shipping quote before ordering. We have experience with customs and export documentation.
See our Return Policy page for full details. Items must be returned in the same condition as received.
Call us at 1-866-210-6660 or email Info@9jaEnterprise.com. Mon–Fri 9AM–5PM CST.
All equipment sold by 9JA Enterprise comes with our in-house warranty. Every unit is tested before it ships — we stand behind what we sell. If you experience an issue covered under our warranty, contact us and we will work to make it right.
Our GNSS receivers are tested in RTK mode before shipping — not just powered on. We verify fix acquisition, radio link, and data output. What you receive is a working unit, not just one that turns on.
Have equipment that needs repair? We offer free diagnostics and professional repair on Trimble, Topcon, Leica, and Sokkia equipment. Learn about our Repair Services →
Trimble SPS930 1" DR Plus Robotic Total Station W/ Machine Control Option Calibrated
$15,499.99
