Trimble S8 1" Robotic Total Station Kit, T10 Tablet, AT360 Active Prism, Access
Trimble S8 1" Robotic Total Station with T10 Tablet, AT360 Active Prism, & Trimble Access
Complete one-person robotic survey package — recently inspected and serviced at a Certified Trimble Shop prior to listing. The S8 is Trimble's premium 1-second angular-accuracy robotic total station — MagDrive servo motors, AutoLock target tracking, and DR Plus reflectorless ranging. Paired with the T10 ruggedized tablet activated with the Robotic Module and running Trimble Access under a perpetual license, the AT360 active 360° tracking prism, and a carbon fiber prism pole, this is everything you need to run a full one-person robotic crew from the moment it arrives.
One-Person Crew — From Setup to Stakeout
This is a complete, deployment-ready robotic total station package. Set up the S8, lock onto the AT360 active prism, and work the entire job from the rod with the T10 tablet in hand — no second crew member required. Active tracking communication between the AT360 and the S8 dramatically reduces re-lock time and improves productivity over passive prism workflows. Two batteries, dual-bay charger, prism pole, and bag all included.
Active Tracking — Not Just Passive Reflection
The AT360 isn't a standard passive 360° prism — it's an active prism that communicates directly with the S8 via integrated LEDs. The total station identifies and locks onto the AT360 specifically, ignoring stray reflections from windows, vehicles, or other prisms in the area. This is the configuration serious robotic surveyors use because it dramatically reduces false locks and re-lock time, especially in busy jobsite environments.
Paired with the S8's AutoLock and MagDrive servo motors, the total station tracks the AT360 smoothly as the rod operator moves through the site — turning a two-person crew workflow into a one-person operation.
| Instrument Type | Robotic Total Station |
| Model | Trimble S8 |
| Angular Accuracy | 1 Arc-Second (1") — Premium Spec |
| Servo Technology | Trimble MagDrive — frictionless servo drives |
| Target Tracking | AutoLock® target acquisition and tracking |
| Distance Measurement | DR Plus (Direct Reflex) — measure to prism or reflectorless |
| Integrated Radio | Yes — for robotic operation with the T10 tablet |
| Field Controller | Trimble T10 Ruggedized Tablet with Robotic Module (Windows platform, 10" display) |
| Field Software | Trimble Access — Perpetual License |
| Tracking Prism | Trimble AT360 Active 360° Prism |
| Condition | Recently Inspected & Serviced at a Certified Trimble Shop |

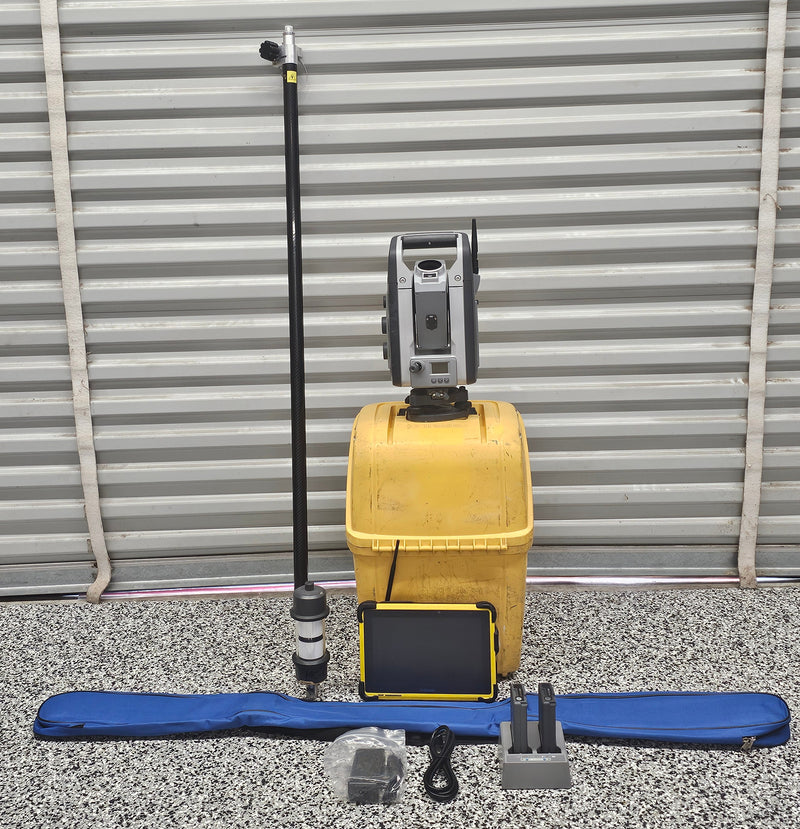

- Trimble S8 1" Robotic Total Station
- Trimble T10 Ruggedized Tablet with Robotic Module — for wireless control of the S8 instrument
- Trimble Access Software — Perpetual License, yours to keep
- Trimble AT360 Active 360° Tracking Prism
- (2) Trimble Lithium-Ion Batteries
- Dual-Bay Battery Charging Kit with AC Power Supply
- Yellow Trimble Hard Transit Case
- Carbon Fiber Prism Pole with Blue Carrying Bag (USA lower 48 only — see note below)
This S8 robotic package has been professionally inspected and serviced at a Certified Trimble Shop prior to this listing — not a self-test, not a bench check, a full certified-technician service. Service work includes verification of instrument accuracy, motor function, target acquisition, distance measurement performance, and overall mechanical and electronic condition. You're not buying an untested unit hoping for the best — you're buying gear that's been validated and serviced by Trimble's own certified network.
The carbon fiber prism pole and blue carrying bag are included for buyers shipping within the lower 48 United States only. Alaska, Hawaii, US territories, and international orders ship the package without the pole and bag due to oversize length-based shipping restrictions. The S8 total station, T10 tablet, AT360 prism, batteries, charger, and case all ship worldwide. Prism poles are widely available locally in most regions.
This robotic survey package has been recently inspected and serviced at a Certified Trimble Shop prior to listing — not just a self-test, but a full certified-technician inspection of the S8 instrument. The T10 tablet ships fully activated with Trimble Access under a perpetual license — yours to keep, no annual renewal. The AT360 active prism, batteries, and charging kit have all been confirmed working together as a complete system.
We ship worldwide. Send us a message with any pre-sale technical questions or compatibility checks — we know this equipment inside and out.
We ship to all 50 states via FedEx and UPS. Most orders ship within 1–2 business days of payment. Tracking provided on all orders.
We ship worldwide. International customers please contact us for a shipping quote before ordering. We have experience with customs and export documentation.
See our Return Policy page for full details. Items must be returned in the same condition as received.
Call us at 1-866-210-6660 or email Info@9jaEnterprise.com. Mon–Fri 9AM–5PM CST.
All equipment sold by 9JA Enterprise comes with our in-house warranty. Every unit is tested before it ships — we stand behind what we sell. If you experience an issue covered under our warranty, contact us and we will work to make it right.
Our GNSS receivers are tested in RTK mode before shipping — not just powered on. We verify fix acquisition, radio link, and data output. What you receive is a working unit, not just one that turns on.
Have equipment that needs repair? We offer free diagnostics and professional repair on Trimble, Topcon, Leica, and Sokkia equipment. Learn about our Repair Services →
Trimble S8 1" Robotic Total Station Kit, T10 Tablet, AT360 Active Prism, Access
$17,999.99
