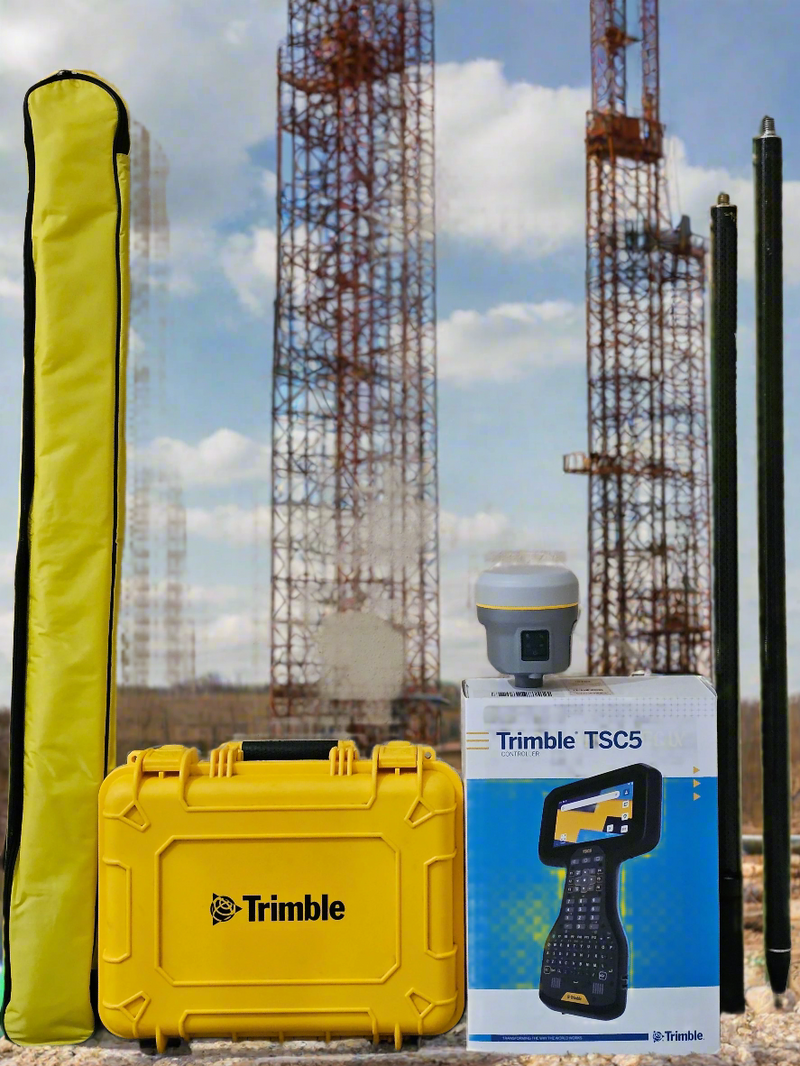

Trimble R980 LTE VRS RTX GNSS Rover System and TSC5 2024 Trimble Access Pipelines
Trimble R980 GNSS Rover + TSC5 Controller — Trimble Access 2024 with Pipelines Module
Complete GNSS rover system featuring the Trimble R980 receiver with ProPoint™ engine, IMU-based tilt compensation, and dual-band UHF radio — paired with the Trimble TSC5 rugged tablet controller running Trimble Access 2024 with the Pipelines Module pre-loaded. A turnkey package for survey, construction layout, and pipeline workflows. Tested and field-ready. Ships from Houston, TX.
The Trimble R980 receiver included in this system is an Engineering Test Unit. Please read carefully before purchase:
• Not eligible for Trimble manufacturer warranty — this unit cannot be registered with Trimble for factory warranty coverage
• Not eligible for Trimble factory service or support
• The unit has been fully tested and verified in working order by our in-house technical team
• Backed by our 3-Month In-House Limited Warranty from 9JA Enterprise
• The TSC5 controller and software license are standard production units — not affected by this notice
If a Trimble factory warranty is essential to your purchase decision, this unit is not the right fit. By purchasing, buyer acknowledges the receiver's engineering test status. Contact us with any questions before placing your order.
- Trimble R980 GNSS Receiver (UHF) — Engineering Test Unit, fully tested
- Trimble TSC5 Rugged Tablet Controller
- Trimble Access 2024 (Perpetual License) with Pipelines Module pre-loaded
- Carbon Fiber Range Pole
- (2) Batteries
- Dual-Bay Battery Charging Kit
- Quick-Connect Bracket for Receiver
- Hard Carrying Case
| Cosmetic Condition | Excellent — minimal wear, well cared for |
| Operational Condition | Fully functional — receiver, controller, and software all tested |
| R980 Receiver Status | Engineering Test Unit — not eligible for Trimble warranty or factory service |
| TSC5 Controller Status | Standard production unit |
| Trimble Access License | 2024 Perpetual License with Pipelines Module included |
| 9JA Warranty | 3-Month In-House Limited Warranty on the complete system |
| Return Window | 30-day return policy |
| Receiver Type | Premium GNSS rover with integrated IMU tilt compensation |
| Chipset | Dual Trimble Maxwell™ 7 Custom GNSS chips with 672 channels |
| Positioning Engine | Trimble ProPoint® for challenging GNSS environments |
| Tilt Compensation | Trimble TIP™ (Inertial Platform) — calibration-free IMU |
| RTK Accuracy (Horizontal) | 8 mm + 1 ppm RMS |
| RTK Accuracy (Vertical) | 15 mm + 1 ppm RMS |
| Code Differential Accuracy | H: 0.25 m + 1 ppm | V: 0.50 m + 1 ppm RMS |
| GNSS Constellations | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC, SBAS |
| Multipath Rejection | Trimble EVEREST™ Plus |
| Ionospheric Mitigation | Trimble IonoGuard™ technology |
| Outage Protection | Trimble xFill® correction outage technology |
| UHF Radio | Integrated 450 MHz or dual-band 450/900 MHz transceiver |
| Cellular | Worldwide 4G LTE modem (integrated) |
| Other Connectivity | Bluetooth®, Wi-Fi® |
| Web Interface | Browser-based config, status, and data transfer |
| Environmental Rating | IP67 dust & water resistant |
| Compatible Software | Trimble Access (included on TSC5) |
| Compatible Controllers | TSC5, TSC7, T10, TDC600 series |
| Type | Rugged tablet field controller |
| Display | 5″ daylight-readable touchscreen |
| Operating System | Android (Trimble field-optimized build) |
| Connectivity | Wi-Fi, Bluetooth, 4G LTE, GNSS, USB-C |
| Battery | Hot-swappable, full-day operation |
| Environmental Rating | IP68 dust & water resistant |
| Operating Temperature | −20 °C to +60 °C (−4 °F to +140 °F) |
| Software Pre-Loaded | Trimble Access 2024 + Pipelines Module |
- Pipeline construction & alignment surveys
- Land surveying & topographic mapping
- Construction layout & stakeout
- As-built data collection
- Boundary & cadastral surveying
- Cut/fill earthwork QA/QC
- Highway, rail, and corridor projects
- Utility location verification
- Site plan verification
- Network rover work via VRS / RTX
Download the official Trimble R980 data sheet
This complete system has been inspected, tested, and verified by our in-house technical team in Houston, TX. The R980 receiver is fully tested and operational; the TSC5 controller and Trimble Access 2024 license with Pipelines Module are standard production items.
Backed by our 3-Month In-House Limited Warranty on the entire system. 30-day return window. Send us a message with any pre-sale technical questions — we know this equipment inside and out.
We are not an authorized Trimble dealer, distributor, or affiliate. This listing is not sponsored, endorsed, or associated with Trimble Inc. in any way.
The equipment offered is pre-owned and does not include Trimble's official warranty or support services. Buyers will not be able to register or obtain a manufacturer warranty through Trimble for this item. As noted above, the R980 receiver is specifically an Engineering Test Unit and is not eligible for any Trimble factory warranty, service, or support.
However, we stand behind our products and provide our own warranty and support to ensure customer satisfaction.
We ship to all 50 states via FedEx and UPS. Most orders ship within 1–2 business days of payment. Tracking provided on all orders.
We ship worldwide. International customers please contact us for a shipping quote before ordering. We have experience with customs and export documentation.
See our Return Policy page for full details. Items must be returned in the same condition as received.
Call us at 1-866-210-6660 or email Info@9jaEnterprise.com. Mon–Fri 9AM–5PM CST.
All equipment sold by 9JA Enterprise comes with our in-house warranty. Every unit is tested before it ships — we stand behind what we sell. If you experience an issue covered under our warranty, contact us and we will work to make it right.
Our GNSS receivers are tested in RTK mode before shipping — not just powered on. We verify fix acquisition, radio link, and data output. What you receive is a working unit, not just one that turns on.
Have equipment that needs repair? We offer free diagnostics and professional repair on Trimble, Topcon, Leica, and Sokkia equipment. Learn about our Repair Services →
Trimble R980 LTE VRS RTX GNSS Rover System and TSC5 2024 Trimble Access Pipelines
$26,999.99
