Trimble R12i Rover + R10 Base RTK GNSS Kit, TSC7 + Trimble Access Perpetual, UHF
Trimble R12i Rover + R10 Base GNSS RTK Kit with TSC7 & Trimble Access Perpetual License
Complete RTK surveying solution with both receivers fully optioned. The R12i rover is loaded with every available perpetual option key — all GNSS constellations, triple-frequency tracking, 20 Hz position rate, tilt compensation, xFill, cellular modem, and maximum precision and memory configurations. The R10 base is configured for both base and rover roles, with multi-constellation triple-frequency tracking and CenterPoint RTX and xFill correction service activations. Add the TSC7 field controller with perpetual Trimble Access, and you have a serious RTK system ready to deploy.
Run Your Own RTK Network — No Subscriptions Required
This is a complete, independent base and rover RTK system. Set the R10 base over a known control point, broadcast corrections via UHF to the R12i rover, and start collecting at survey-grade accuracy with full tilt compensation on the rover. The TSC7 controller ships with the latest Trimble Access activated under a perpetual license — yours to keep, no annual fee. No CORS subscription required, no missing accessories, no software trial waiting to expire.
Survey From Non-Vertical Pole Positions
The R12i in this kit is Trimble's tilt-compensated survey rover — built on the ProPoint GNSS engine and the Trimble Inertial Platform (TIP). The IMU calculates the exact ground position even when the rod is tilted, meaning you can survey corners, building edges, under overhangs, and confined spaces without forcing the pole vertical. This dramatically speeds up topographic work and dimensions you couldn't reach with a traditional pole-vertical receiver.
The R12i is the current-generation survey rover — the same receiver shipping new at full Trimble retail today.
Fully Loaded with Every Perpetual Option
This R12i is configured with the full range of available perpetual option keys — every constellation, every frequency, every operating mode, and every precision and connectivity enhancement Trimble offers for this receiver. Every license below is perpetual — yours to keep, no recurring subscription. When buying used, option configuration matters as much as the receiver itself; a partially-optioned R12i can cost thousands less in capability than a fully-loaded one.
GNSS Constellations
- Standard Receiver Firmware (GPS)
- GLONASS
- Galileo
- BeiDou
- QZSS
- NavIC (IRNSS)
- SBAS
Signal & Position Tracking
- Dual Frequency Tracking
- Triple Frequency Tracking
- 20 Hz Position Update Rate
Operating Modes
- Base
- Rover / Network Rover
- Inertial Navigation (TIP / IMU)
Precision Enhancement
- Precision Level Max / Max
- Trimble xFill Activation
Connectivity & Memory
- Cellular Modem Activation
- Memory Extension to 6 GB
- Trimble Data Collector Support
R10 Fully Optioned — With Correction Services Active Through 2030
The R10 base receiver is also fully optioned for serious base station and rover use. It carries both Base RTK and Rover Precise RTK precision capabilities — meaning it can run as a base today and a rover tomorrow if your workflow changes. The unit also includes CenterPoint RTX and xFill correction service activations, multi-constellation triple-frequency tracking, and full connectivity through internal UHF radio, Wi-Fi, Bluetooth, and GSM/GPRS modem.
Precision Capabilities
- Base RTK
- Rover Precise RTK
GNSS Constellations
- GPS (L1-C/A, L2E, L2C, L5)
- SBAS (L1-C/A, L5)
- GLONASS (L1-C/A, L1P, L2-C/A, L3)
- Galileo (E1, E5-A, E5-B, E5-AltBOC)
- BeiDou (B1, B2)
- QZSS (L1-C/A, L1S, L1C, L2C, L5)
Signal & Position Tracking
- Triple Frequency Tracking
- 20 Hz Maximum Measurement Rate
Correction Services
- CenterPoint RTX
- xFill
Communication & Connectivity
- Internal Radio (450–470 MHz UHF)
- Bluetooth
- Wi-Fi
- GSM / GPRS Modem
Additional Features
- Binary Outputs
- 4 GB Data Logging Memory
| Configuration | Complete Base & Rover RTK Surveying Kit |
| Rover Receiver | Trimble R12i GNSS with internal UHF radio — fully loaded with all 18 perpetual option keys |
| Base Receiver | Trimble R10 GNSS with internal UHF radio (450–470 MHz) — fully optioned with CenterPoint RTX & xFill activations |
| Tilt Compensation | Yes — R12i TIP / IMU for non-vertical pole positions |
| GNSS Engine (Rover) | Trimble ProPoint — multi-constellation GNSS tracking |
| Radio | UHF (internal on both receivers) |
| Field Controller | Trimble TSC7 with Windows 10 platform |
| Field Software | Trimble Access — Perpetual License, latest version |
| Condition | Fully Tested · Working Condition Guaranteed |

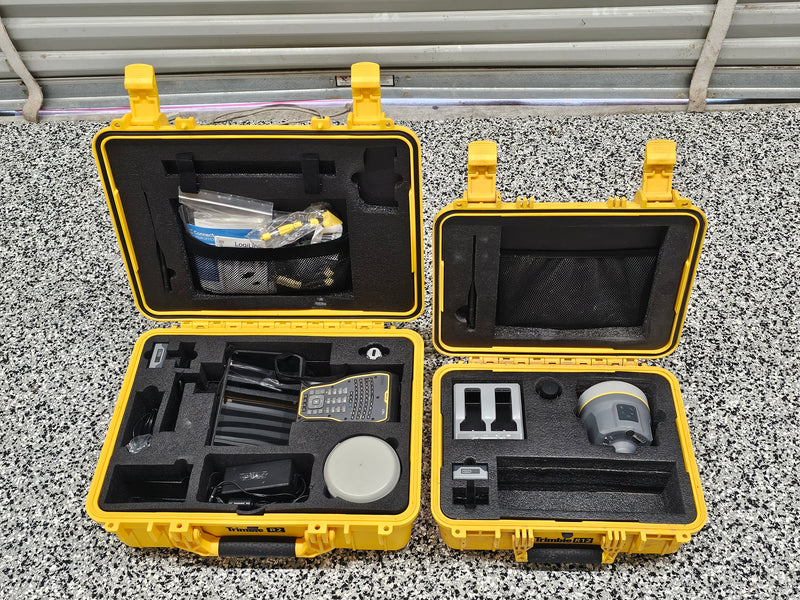

- Trimble R12i GNSS Rover Receiver — with internal UHF radio, ProPoint engine, and tilt compensation (TIP/IMU)
- Trimble R10 GNSS Base Receiver — with internal UHF radio
- Trimble TSC7 Field Controller with Windows 10
- TSC7 Pole Clamp and Bracket
- Trimble Access Software — Perpetual License, latest version, yours to keep
- (2) Trimble Lithium-Ion Batteries (for receivers)
- (2) TSC7 Batteries
- (1) Dual-Bay Battery Charging Kit
- (2) AC Power Adapters (charger and TSC7)
- (2) UHF Whip Antennas — one for each receiver
- (2) Quick-Release Receiver Adapters
- Radio Antenna Coax Cable
- Trimble USB Adapter Cable (P/N 80799)
- Trimble Cable (P/N 80751)
- (2) Trimble Cases
- Trimble R12i Quick Start Guide & Registration Documentation
- 2-Meter 2-Piece Carbon Fiber Survey Rod with Trimble Yellow Carrying Bag (USA lower 48 only — see note below)
The 2-meter 2-piece carbon fiber survey rod and yellow Trimble carrying bag are included for buyers shipping within the lower 48 United States only. Alaska, Hawaii, US territories, and international orders ship the kit without the rod and rod bag due to oversize length-based shipping restrictions. The receivers, controller, software license, batteries, charger, antennas, cables, and all other components ship worldwide. Carbon fiber rods are widely available locally in most regions.
This complete base & rover kit has been fully tested and verified by our in-house technical team. The R12i rover, R10 base, TSC7 controller, and Trimble Access perpetual license activation have been confirmed working as a complete RTK system. The kit is guaranteed to arrive in working condition — ready to deploy on your first job.
We ship worldwide. Send us a message with any pre-sale technical questions or compatibility checks — we know this equipment inside and out.
We ship to all 50 states via FedEx and UPS. Most orders ship within 1–2 business days of payment. Tracking provided on all orders.
We ship worldwide. International customers please contact us for a shipping quote before ordering. We have experience with customs and export documentation.
See our Return Policy page for full details. Items must be returned in the same condition as received.
Call us at 1-866-210-6660 or email Info@9jaEnterprise.com. Mon–Fri 9AM–5PM CST.
All equipment sold by 9JA Enterprise comes with our in-house warranty. Every unit is tested before it ships — we stand behind what we sell. If you experience an issue covered under our warranty, contact us and we will work to make it right.
Our GNSS receivers are tested in RTK mode before shipping — not just powered on. We verify fix acquisition, radio link, and data output. What you receive is a working unit, not just one that turns on.
Have equipment that needs repair? We offer free diagnostics and professional repair on Trimble, Topcon, Leica, and Sokkia equipment. Learn about our Repair Services →
Trimble R12i Rover + R10 Base RTK GNSS Kit, TSC7 + Trimble Access Perpetual, UHF
$31,995.00
