Trimble MS992 Pair Machine Conrol GPS GNSS RTK Globes

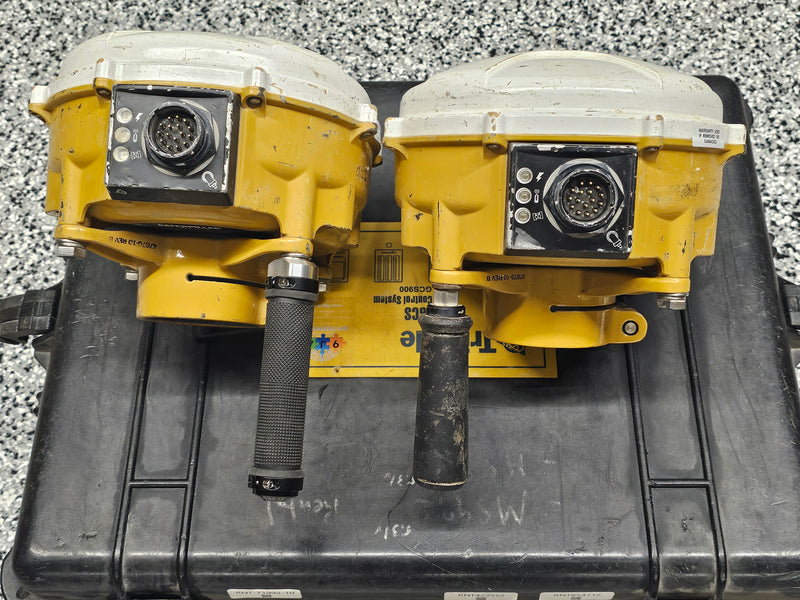

Pair of Trimble MS992 GNSS Smart Antennas — Full Option RTK Globe Heads
Matched pair of Trimble MS992 GNSS smart antennas — the workhorse globe heads for Trimble GCS900 grade control and CCS900 compaction systems. Both units are Full Option RTK with all key firmware enabled, tested at a Trimble Certified service shop, and guaranteed in working order. Backed by a 3-month in-house limited warranty. Actual photos shown. Ships from Houston, TX.
- (2) Trimble MS992 GNSS Smart Antennas — Full Option RTK / GNSS
- (1) Hard Carrying Case (foam-lined transport & storage)
| Cosmetic Condition | Good — shows wear consistent with age, no major damage |
| Operational Condition | Good working condition — both units guaranteed in working order |
| Testing | Tested and verified at a Trimble Certified Service Shop |
| Warranty | 3-Month In-House Limited Warranty |
| Photos | Actual photos shown — what you see is what you get |
- CMR Inputs & Outputs
- RTCM Inputs
- JX1100 Radio Driver
- Binary Outputs
- Moving Base
- 10 Hz & 20 Hz Measurements
- Data Logging
- L2CS & L5 Signal Tracking
- GLONASS Enabled
- Webserver Enabled
| Receiver Type | Integrated GNSS Smart Antenna (receiver + antenna + isolation in one rugged housing) |
| Tracking Channels | 220 channels — tracks up to 44 satellites simultaneously |
| GNSS Signals | GPS L1C/A, L2C, L2E, L5 | GLONASS L1C/A, L1P, L2C/A, L2P | SBAS (WAAS, EGNOS, MSAS) |
| RTK Accuracy (Horizontal) | 8 mm + 1 ppm RMS |
| RTK Accuracy (Vertical) | 15 mm + 1 ppm RMS |
| Code Differential Accuracy | H: 8 mm + 0.5 ppm | V: 15 mm + 0.5 ppm RMS |
| RTK Initialization | Typically < 10 sec + 0.5 × baseline (km), up to 30 km |
| Chipset | Trimble Maxwell 6 with R-Track technology |
| Mounting | Cab or blade mount with quick-release ratchet bracket |
| Indicators | 3 yellow LEDs for instant operational feedback |
| Connector | Single high-cycle-count cable connector |
| Network Capability | TCP/IP capable using serial PPP connection |
| Sealing | 100% sealed rugged housing |
| Compliance | Meets EU RoHS directives |
- Trimble GCS900 Grade Control
- Trimble CCS900 Compaction Control
- Trimble Earthworks (compatible)
- Cat AccuGrade systems
- CB430 / CB450 / CB460 control boxes
- Dozers (single or dual config)
- Motor graders
- Excavators
- Scrapers & pull-type scrapers
- Soil & asphalt compactors
- Pavers
Both MS992 units have been tested and verified at a Trimble Certified Service Shop and are guaranteed in working order. Backed by our 3-month in-house limited warranty. The pair has been further inspected and tested by our technical team prior to shipping.
30-day return window. Send us a message with any pre-sale technical questions — we know this equipment inside and out.
We are not an authorized Trimble dealer, distributor, or affiliate. This listing is not sponsored, endorsed, or associated with Trimble Inc. in any way.
The equipment offered is pre-owned and does not include Trimble's official warranty or support services. Buyers will not be able to register or obtain a manufacturer warranty through Trimble for this item.
However, we stand behind our products and provide our own warranty and support to ensure customer satisfaction.
We ship to all 50 states via FedEx and UPS. Most orders ship within 1–2 business days of payment. Tracking provided on all orders.
We ship worldwide. International customers please contact us for a shipping quote before ordering. We have experience with customs and export documentation.
See our Return Policy page for full details. Items must be returned in the same condition as received.
Call us at 1-866-210-6660 or email Info@9jaEnterprise.com. Mon–Fri 9AM–5PM CST.
All equipment sold by 9JA Enterprise comes with our in-house warranty. Every unit is tested before it ships — we stand behind what we sell. If you experience an issue covered under our warranty, contact us and we will work to make it right.
Our GNSS receivers are tested in RTK mode before shipping — not just powered on. We verify fix acquisition, radio link, and data output. What you receive is a working unit, not just one that turns on.
Have equipment that needs repair? We offer free diagnostics and professional repair on Trimble, Topcon, Leica, and Sokkia equipment. Learn about our Repair Services →
Trimble MS992 Pair Machine Conrol GPS GNSS RTK Globes
$6,999.99
