Trimble Fugro Marinestar 9205-GNSS receiver 83118-10 Galileo Beidou SBAS GPS

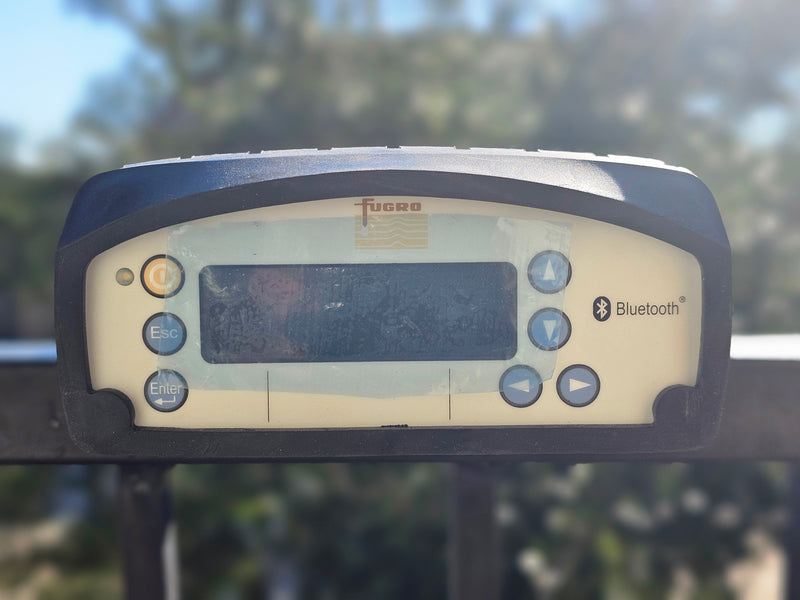

Trimble Fugro Marinestar GNSS receiver model 9205.
Sale includes the 9205 Receiver only
Installed Options:
| Firmware Warranty Date: | 2023-01-01 |
| Precision Capability | Base | L1 Only | |
| Rover | DGNSS | ||
| Frequency | Single Frequency Tracking | Installed | |
| Constellation | GPS | Installed | L1-C/A |
| SBAS | Installed | L1-C/A | |
| GLONASS | Installed | L1-C/A, L1P | |
| Galileo | Installed | E1, E6 | |
| BeiDou | Installed | B1, B1C | |
| QZSS | Installed | L1-C/A, L1C | |
| IRNSS | Installed | L5-C/A | |
| Correction Services | Fugro HP/XP/G2/G4/G2+/G4+ | 2019-9-4 | |
| Fugro VBS | 2012-7-13 | ||
| Maximum Measurement Rate | 10 Hz | Installed | |
| Communication | Bluetooth | Installed | |
| Additional Features | Trimcomm Login Required | Not Installed | |
| Option | Installed | Option | Installed | Option | Installed |
|---|---|---|---|---|---|
| GPS | X | GLONASS | X | Galileo | X |
| BeiDou | X | BeiDou B1C | X | QZSS | X |
| IRNSS | X | L1C Tracking | QZSS L1C Tracking | X | |
| Dual Frequency Tracking (L2) | FALSE | L2C | Triple Frequency Tracking (L5) | FALSE | |
| QZSS LEX | BeiDou B3 | X | Galileo E6 | X | |
| Everest | X | Maximum Measurement Rate | 10Hz | Moving Base | |
| VRS | X | HTTPS | X | Dual Frequency MSS | X |
| CMR Input | X | No Static CMR Input | CMR Output | X | |
| No Static CMR Output | X | Force Float | Force Float Position With Static CMR | ||
| CMRx Input | X | CMRx Output | X | RTCM Input | X |
| RTCM Output | X | RTCM DGNSS Input | X | RTCM DGNSS Output | |
| Heading Mode Only | RTK Baseline Length Limit | No Limit | Location RTK | 30cm / 30cm | |
| NMEA | X | Data Collector | Data Collector Lite | ||
| Binary Outputs | Data Logging | Bluetooth | X | ||
| GPRS | X | Advanced RTCM Output | X | Programmatic Interface | |
| FW Upgrade Check | X | Enable 1PPS | RTK Support | ||
| Simulator Support | X | Enhanced Security | X | - |
| Firmware Warranty Date: | 2023-01-01 |
