Trimble SX12 Rental — Daily, Weekly & Monthly Rates
Trimble
SX12
Rental
Survey, imaging, and high-speed 3D scanning in one instrument. Get production-ready access to the industry's most advanced scanning total station — without the capital outlay.
Three Instruments.
One Setup.
The SX12 replaces a robotic total station, a 3D laser scanner, and an imaging system with a single instrument. Capture survey-grade points, dense point clouds, and high-resolution imagery from the same station — no re-setup, no registration headaches.
1″ Total Station
True 1-arcsecond angular accuracy with Trimble's most precise EDM. Full robotic operation with MagDrive servos and Autolock prism tracking for solo crews.
High-Speed 3D Scanning
Lightning 3DM technology captures 26,600 points per second out to 600 m, with just 1.5 mm range noise at 200 m — clean point clouds with less office cleanup.
Trimble VISION Imaging
Multiple integrated cameras deliver sharp, color-rich panoramas and metric imagery. Aim, document, and measure from photos back in the office.
Green Laser Pointer
Eye-safe Class 1M focusable green laser with the smallest spot in the industry — 3 mm at 50 m. Ideal for layout, tunneling, and blast-hole staging.
Access or Perspective.
Every Complete Kit ships pre-configured with your choice of Trimble field software — loaded on a TSC110 rugged tablet and ready to collect the moment it arrives.
Industry Standard
Industry-standard surveying software for layout, topo, traverse, control, and conventional total station workflows. Best for surveyors and construction crews already in the Trimble Access ecosystem.
Scan Optimized
Purpose-built scanning field software for the SX-series. Optimized for high-density 3D scan capture, panoramic imaging, and registered point cloud workflows. Best for scanning-first projects.
Inspected,
Calibrated, Ready.
Every SX12 rental — Unit-Only or Complete Kit — is inspected, calibrated, and field-tested before it ships. A calibration certificate is included with every rental.
-
01

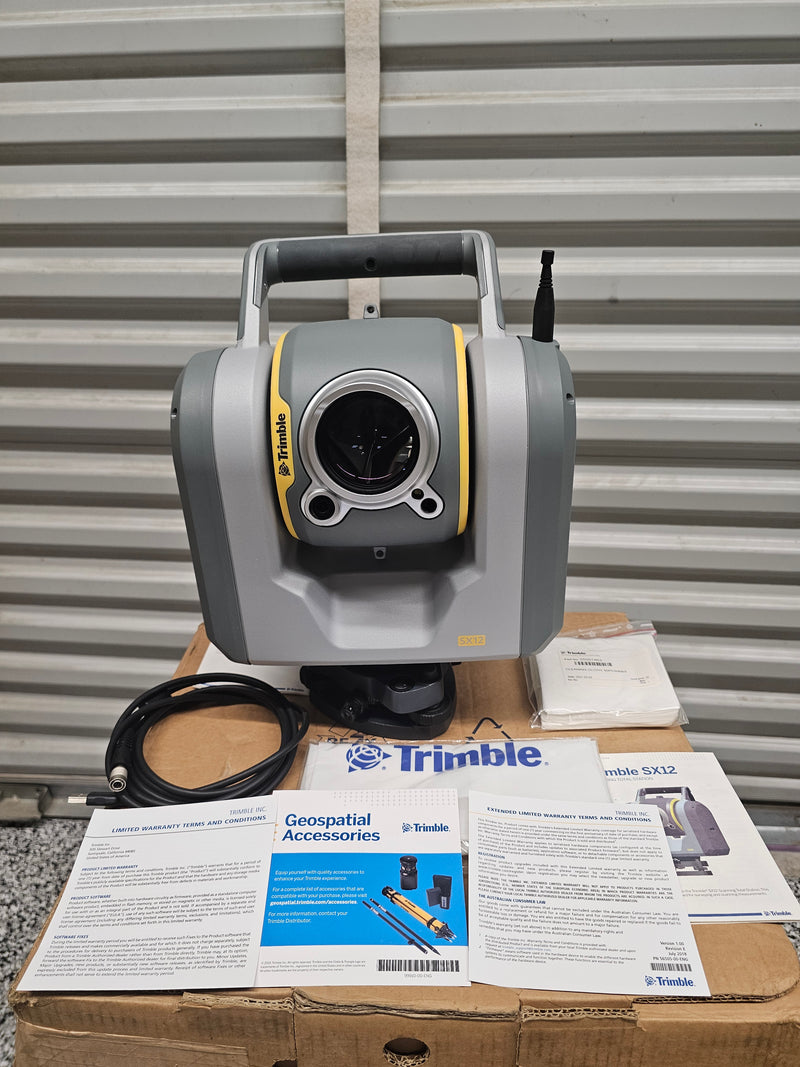

Trimble SX12 Instrument
1″ scanning total station with Lightning 3DM, Trimble VISION cameras, and focusable green laser pointer. Inspected and calibrated before every rental.
-
02
Two (2) Internal Li-Ion Batteries
Two Trimble S-Series smart batteries for a full field day, plus the dual-bay battery charger and power supply for overnight charging.
-
03
Seco Heavy-Duty Tripod
Heavy-duty surveying tripod rated for the SX12's weight and scanning stability requirements. Rock-solid setup for clean point clouds.
-
04
Hard Transport Case + Data Cable
Foam-fitted hard transport case for safe shipping and field transport, plus USB data cable for direct data transfer.
-
05
Calibration Certificate
Every unit is inspected, calibrated, and field-tested before shipping. A calibration certificate is included with every rental.
Step up to the field-ready turnkey package and add:
- Trimble TSC110 rugged tablet controller
- Your choice of Trimble Access or Trimble Perspective
- Tablet bracket & pole mount + tablet charger
- Pre-configured & ready to scan on arrival
SX12 Key Specifications
Scanning total station — full capability
One SX12 vs Separate Tools
Renting an SX12 replaces three separate rentals — a robotic total station, a 3D laser scanner, and an imaging rig — with one instrument and one setup per station.
| Capability | Trimble SX12 One Instrument |
Robotic Total Station | 3D Laser Scanner |
|---|---|---|---|
| 1″ Total Station Survey | ✓ | ✓ | — |
| High-Speed 3D Scanning | ✓ 26,600 pts/s | — | ✓ |
| Integrated Imaging | ✓ Trimble VISION | Limited | Varies |
| Survey-Grade Registration | ✓ Built-in ★ | — | Targets/cloud |
| Green Laser Pointer | ✓ 3 mm @ 50 m | Some models | — |
| Setups Required | 1 per station ★ | 1 | 1 (separate) |
| Robotic / Solo Operation | ✓ MagDrive + Autolock | ✓ | — |
| Office Software | TBC / RealWorks | TBC | Varies |
| Rentals to Cover All 3 Jobs | 1 ★ | 2+ separate rentals | |
★ = SX12 advantage. One SX12 rental replaces a total station rental plus a scanner rental — fewer setups, one dataset, one bill.
Simple,
Transparent Rates
Choose a unit-only rental for crews with their own controller, or a complete field-ready kit with the TSC110 and your choice of software. Volume and project pricing available.
- Trimble SX12 instrument
- (2) Internal Li-Ion batteries + charger
- Seco heavy-duty tripod
- Hard transport case + USB cable
- Calibration certificate
- Trimble TSC110 rugged tablet controller
- Trimble Access or Trimble Perspective
- Tablet bracket, pole mount & charger
- Pre-configured & ready to scan
- Priority phone support
Prices subject to change and unit availability. 3-day minimum on all rentals. $5,000 refundable deposit and Certificate of Insurance required. Rentals over 90 days qualify for custom pricing. Ships FedEx/UPS from Houston / Cypress, TX — international shipping available.
Rental Terms
SX12 Rental FAQ
Ready to Scan?
Fill out the rental agreement and we'll confirm availability within 1 business day. Questions or volume rentals? Call us — you'll talk to someone who knows the instrument.
Trimble SX12 Scanning Total Station Rental — Survey, Scan & Image in One
The Trimble SX12 scanning total station is the industry's most advanced integrated instrument for surveying, engineering, and reality-capture professionals. It combines a 1″ robotic total station, high-speed Lightning 3DM laser scanning at 26,600 points per second, Trimble VISION imaging, and a focusable green laser pointer — all in a single setup. Renting the SX12 gives crews production-ready access to flagship scanning technology without the capital outlay, perfect for one-off scan projects, peak-season overflow, or evaluating the SX12 before purchase.
Our SX12 rental is available two ways. The Unit-Only rental suits crews that already have a compatible controller and license, and includes the instrument, two batteries and charger, a Seco heavy-duty tripod, hard transport case, data cable, and a calibration certificate. The Complete Kit is a field-ready turnkey package that adds a TSC110 rugged tablet pre-configured with your choice of Trimble Access for survey workflows or Trimble Perspective for scanning workflows — ready to collect data the moment it arrives.
Every SX12 is inspected, calibrated, and field-tested before shipping, with a calibration certificate included. A 3-day minimum applies, with a $5,000 refundable deposit and a Certificate of Insurance covering the $65,000 replacement value. Weekly and monthly rates build in significant savings, and rentals over 90 days qualify for custom project pricing. 9JA Enterprise is based in Houston / Cypress, TX and ships nationwide, with international shipping available. Contact us to check availability or get a quote for your project dates.
